Cable Carousels
Highly modular cable carousels machined to perfection — 2,500 / 3,000 / 7,000 / 9,000 MT builds, electric VFD drive.
Highly modular cable carousels machined to perfection — 2,500 / 3,000 / 7,000 / 9,000 MT builds, electric VFD drive.
Power-cable carousel systems engineered for cable lay vessels — deployed across Power, Oil & Gas and Telecom for subsea cable, flexible pipeline and cable-repair operations.
Four carousels delivered: 2,500 / 3,000 / 7,000 / 9,000 MT across three cable-lay vessels
Engineering, fabrication, FAT and commissioning of four cable carousels across three vessels: the featured 7,000 MT spread for LS Marine Solution's GL 2030 DP2 Cable Lay Barge (carousel + containerised loading tower + integrated 2 MT LCE + top-loading cable highway), the 2,500 MT and 9,000 MT carousels for Shinfox Far East's SFE Adventurer cable-lay vessel, and the 3,000 MT underdeck carousel with spooling arm for the Longyin 9 hybrid CLV newbuild. All builds use the same highly-modular, precision-machined platform with CNC-machined load-bearing rings concentricity-checked under full cable stack.
Engineering, fabrication, FAT and offshore commissioning — all under one roof.
Talk to engineering →Photographs from the Four carousels delivered: 2,500 / 3,000 / 7,000 / 9,000 MT across three cable-lay vessels — engineered, fabricated and installed by Dimension.
Project photography from a Dimension build — GL 2030 DP2 Cable Lay Barge · SFE Adventurer · Longyin 9, Singapore (engineered & fabricated) (2024 – 2025). Class: Project-specific. Client: LS Marine Solution (GL 2030) · Shinfox Far East (SFE Adventurer).
Select a build to view its full specification table, vessel deployment and key features. All builds share the same modular, precision-machined platform.

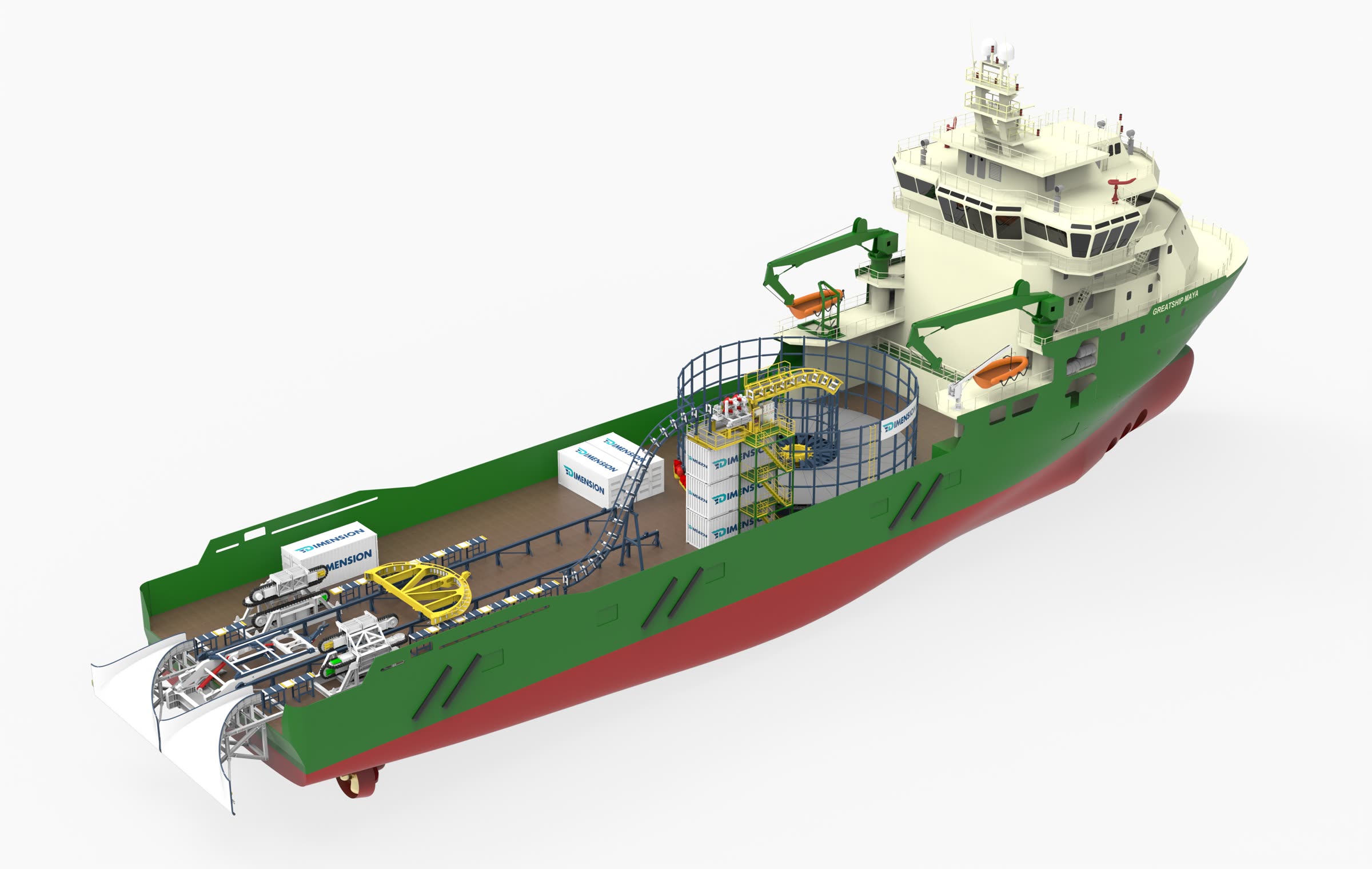

SFE Adventurer · vessel-of-opportunity package for any MPSV/OCV · DIMS-2500MT/CAR-001 · FAT 24 Jan 2025
Mid-capacity carousel originally built for the SFE Adventurer cable-lay vessel and engineered as a fully-modular vessel-of-opportunity package — the same 2,500 MT spread can be mobilised onto any suitable MPSV / OCV with adequate deck loading for short-campaign cable lay work. CNC-machined slewing ring and bolted modular shell strike fast on deck; 4 × 75 kW Smart Inverter Drives synchronised with the vessel's tensioner / LCE for precise lay-rate matching. Render shows an illustrative MPSV/OCV deployment configuration.
| Parameter | Value |
|---|---|
| Max Capacity | 2,500 MT |
| Max Outer Diameter | 17.3 m |
| Inner Core Diameter | 6.0 m |
| Basket Height | 6.5 m above carousel floor |
| Drive Motors | 4 × 75 kW |
| Motor Type | Variable-frequency electric drive |
| Power Supply | 3-phase, 415–440 V, 50–60 Hz |
| Working Lay Speed | 0 – 1,200 m/hr |
| User Interface | Local + remote console |
| Overall Weight | 210 t |
| Footprint (L × W × H) | 17.4 × 17.4 × 7.6 m |
| Model Number | DIMS-2500MT/CAR-001 |
| FAT | 24 Jan 2025 |
| Manufactured | Jan 2025 |

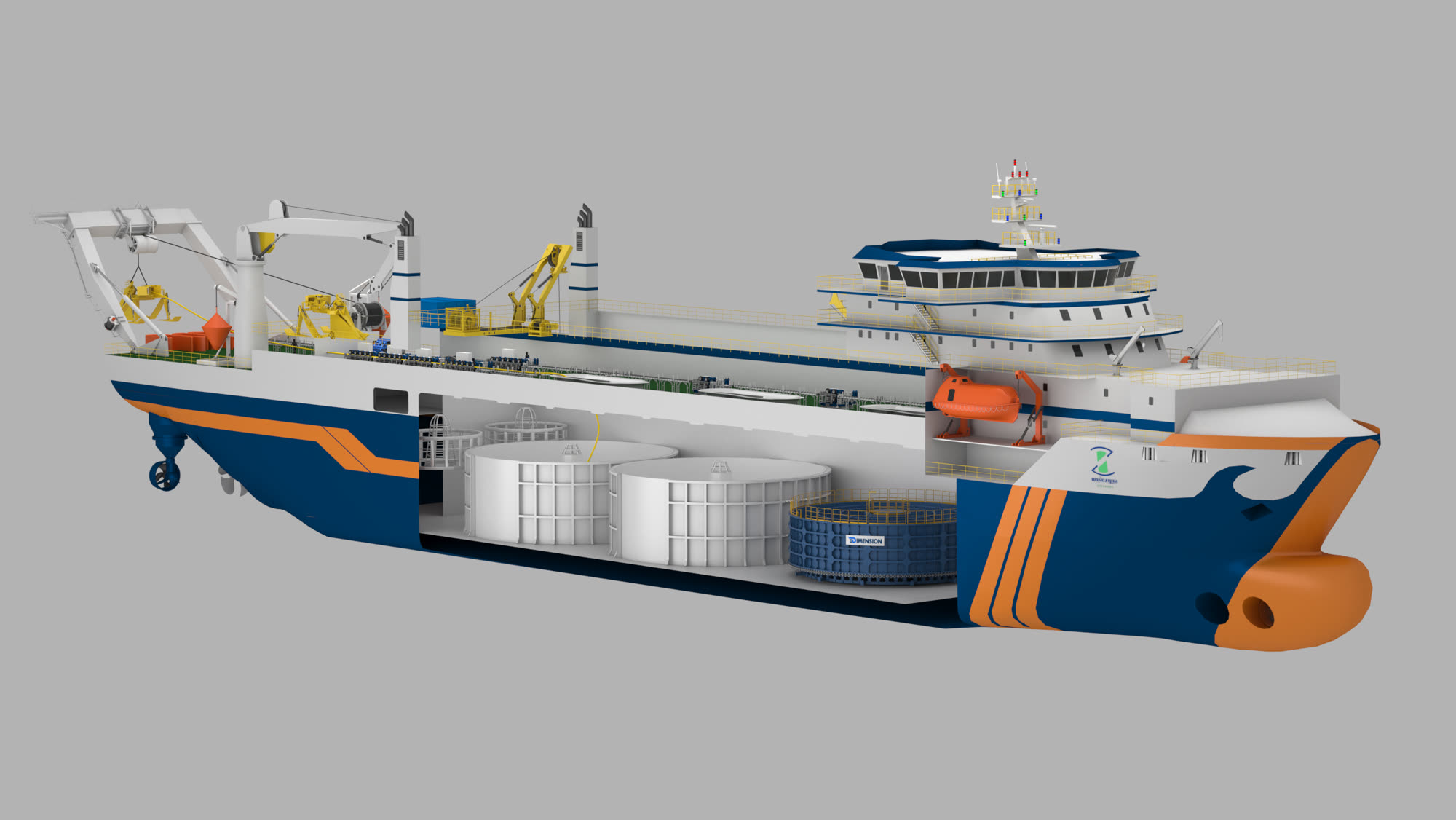

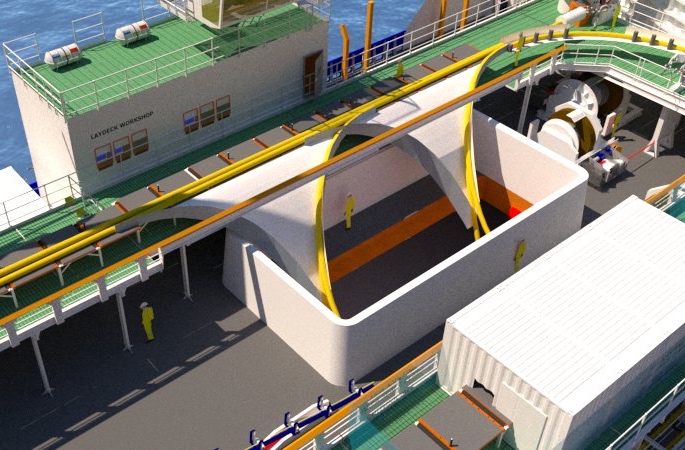

Longyin 9 · 10,000 MT hybrid cable lay vessel · underdeck installation with integrated spooling arm

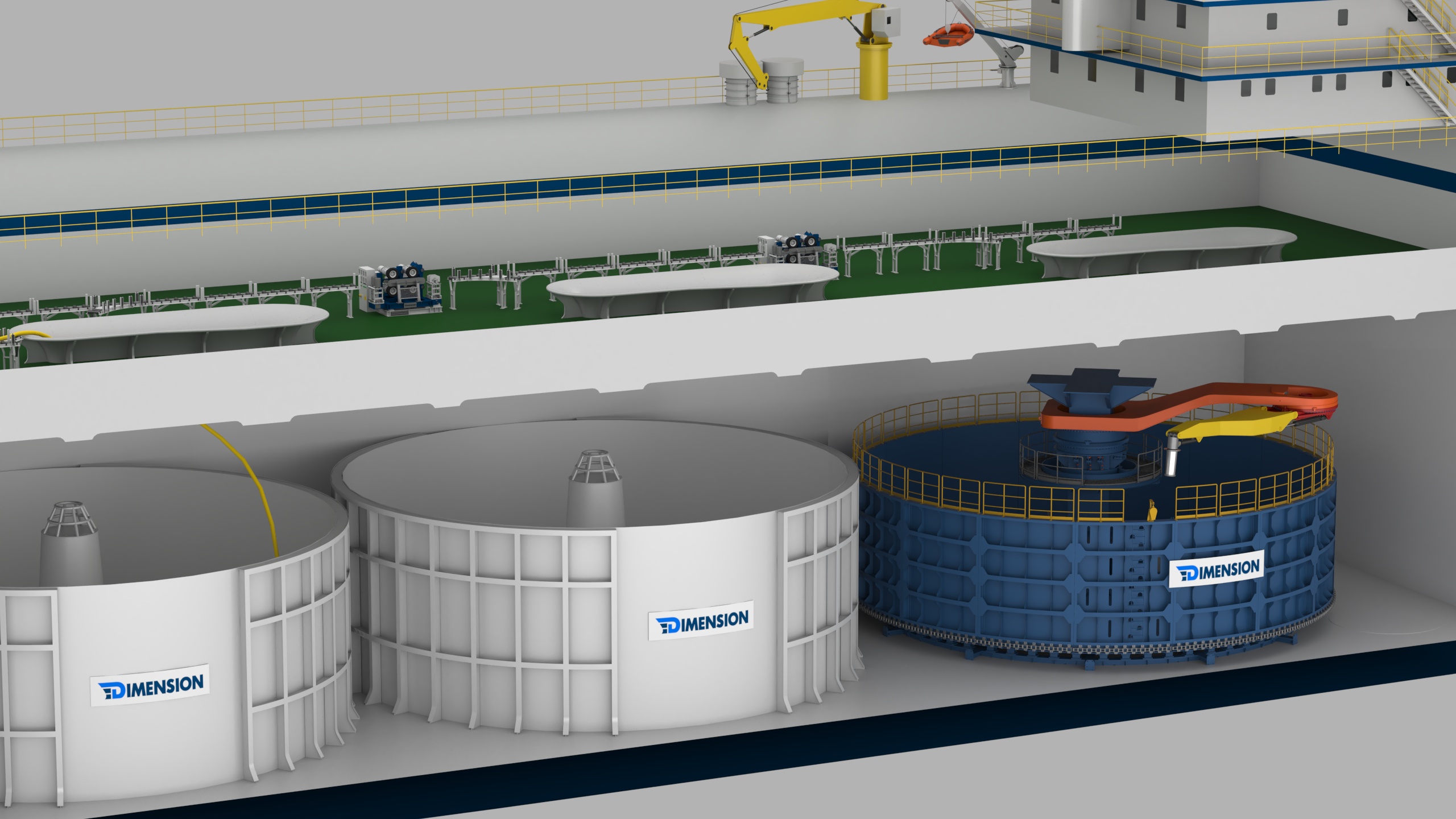

Underdeck carousel package delivered for Longyin 9 — a 10,000 MT hybrid cable lay vessel. The 3,000 MT carousel sits below the main deck, lowering the vessel's centre of gravity for improved stability and freeing weather-deck real estate for lay-spread equipment. The spread is paired with a dedicated spooling arm for top-loading product directly into the carousel during transpooling and at-sea reload, with active pay-on / pay-off control synchronised to the carousel rotation.
| Parameter | Value |
|---|---|
| Max Capacity | 3,000 MT |
| Installation | Underdeck — below main deck |
| Top-Loading | Integrated spooling arm with active pay-on/off |
| Vessel | Longyin 9 — 10,000 MT hybrid cable lay vessel |
| Vessel Type | Hybrid cable lay vessel — diesel-electric propulsion |
| Drive Motors | VFD electric (project-specific count) |
| Motor Type | Variable-frequency electric drive |
| Working Lay Speed | Synchronised with vessel tensioner |
| Control | Local + remote — integrated with vessel cable-lay control room |
| Configuration | Modular underdeck — designed-in to vessel newbuild |
| Spooling Arm | Top-loading, active synchronised feed |
| Status | Delivered as part of Longyin 9 newbuild package |
GL 2030 DP2 Cable Lay Barge · LS Marine Solution · 4 × 160 kW VFD · with 2 MT LCE loading tower

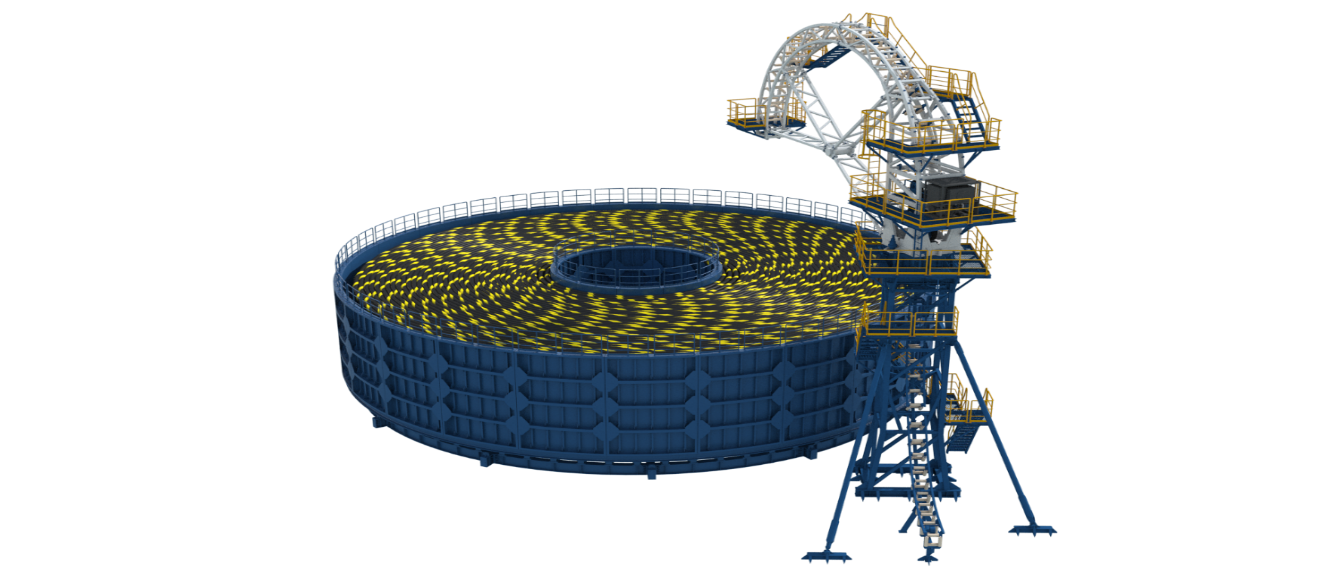

Featured build — the 7,000 MT cable carousel system delivered for LS Marine Solution's GL 2030 DP2 Cable Lay Barge. A modular spread comprising the carousel, an adjacent containerised loading tower with 2 MT integrated Linear Cable Engine (LCE) and a top-loading cable highway. Driven by 4 × 160 kW VFD duty motors through a bevel-helical gearbox; precisely-controlled frequency drives match the turntable speed exactly to the vessel's cable laying rate, with quick-connect control links for local diagnostics or remote operation from the cable-lay control room. Engineered & fabricated in Singapore, 2024 – 2025.
| Parameter | Value |
|---|---|
| Max Capacity | 7,000 MT |
| Max Outer Diameter | 28.0 m |
| Inner Core Diameter | 10.0 m |
| Basket Height | 6.5 m above carousel floor |
| Drive Motors | 4 × 160 kW VFD duty motors |
| Motor Type | Variable-frequency electric drive |
| Power Supply | 3-phase, 415–440 V, 50–60 Hz |
| Gearbox | Bevel-helical |
| Working Lay Speed | 0 – 1,800 m/hr |
| Acceleration / Retardation (fully loaded) | 45 s / 45 s |
| Emergency Stop Time | 20 s |
| Design Acceleration (ULS) | Vert 14.5 m/s² · Trans 4.8 m/s² · Long 2.7 m/s² |
| PLC | Siemens / Rockwell / Schneider |
| User Interface | HMI + joystick, local 10 m quick-connect cable + remote console |
| Loading Tower | Containerised, integrated 2 MT LCE + cable highway, work platform with railing |
| Linear Cable Engine (2-pair) | 2 MT capacity, 5 m cable MBR, 150 kg/m cable, 20–400 mm diameter |
| Vessel | GL 2030 DP2 Cable Lay Barge |
| Client | LS Marine Solution |
| Engineered & Fabricated | Singapore, 2024 – 2025 |
| Class | Project-specific |

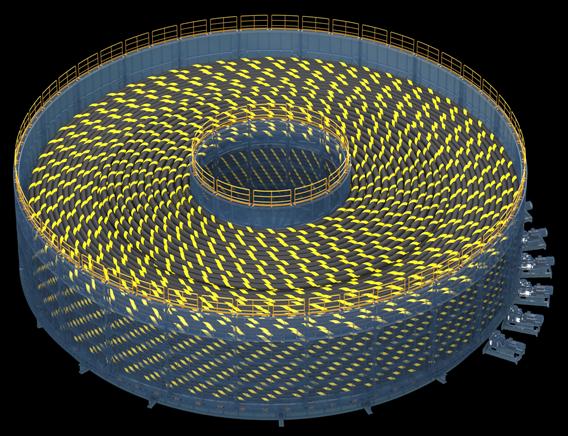

SFE Adventurer · DIMS-9000MT/CAR-001 · 6 × 90 kW VFD · FAT 21 Feb 2025
Largest in the family — a long-haul HV submarine cable carousel for the SFE Adventurer cable-lay vessel, sized for export-cable and deepwater inter-array campaigns. Six 90 kW Smart Inverter drives deliver the torque required for deep cable stacks while maintaining synchronous lay-rate matching. Modular shore-yard build with precision-machined load-bearing rings.
| Parameter | Value |
|---|---|
| Max Capacity | 9,000 MT |
| Max Outer Diameter | 31.0 m |
| Inner Core Diameter | 10.0 m |
| Drive Motors | 6 × 90 kW |
| Motor Type | Variable-frequency electric drive |
| Power Supply | 3-phase, 415–440 V, 50–60 Hz |
| Working Lay Speed | 0 – 1,200 m/hr |
| User Interface | Local + remote console |
| Overall Weight | 930 t |
| Footprint (L × W × H) | 32.0 × 32.0 × 8.8 m |
| Model Number | DIMS-9000MT/CAR-001 |
| FAT | 21 Feb 2025 |
| Manufactured | Feb 2025 |
Six integration gates from layout planning through class approval — the standard workflow applied to every carousel and handling package Dimension delivers.
Highly experienced operations team sets integration layout against vessel constraints.
9,000 MT integrated analysis across carousel, loading arm and cable path.
Structural and mechanical integration of carousel with loading arm and LCE.
Factory Acceptance Testing — function and load testing to rated capacity.
Function testing of the integrated carousel under working load.
ABS foundation approval and BV carousel certification, 9,000 MT class.
Submarine power cable lay (HVAC / HVDC) for offshore wind and grid interconnects
Oil & Gas flexible pipeline and umbilical installation
Telecom backbone cable lay and repair campaigns
Transpooling and factory-acceptance shoreside operations
Get a tailored datasheet, 3D model and budgetary quotation for your specific project.
From feasibility through commissioning — Dimension delivers in-house engineered marine equipment, backed by 14+ years of offshore operations.
