Smart constant-tension umbilical winches for precise speed and tension control during downhole tool deployment — self-contained, container-mobilised and PLC-managed for safe, reliable operation in challenging offshore environments.
In-house engineered constant-tension umbilical winches for the deployment and recovery of downhole tools, CPT and SBF umbilicals, ROV tethers and small-diameter subsea cables — built around state-of-the-art smart-winch innovations to deliver direct, precise control of speed and tension in challenging offshore environments.
Dimension's subsea umbilical winches are self-contained — no external sensors or auxiliary components required — and are sized for fast container mobilisation. Closed-loop tension control is intelligently managed by an industrial PLC and exposed through a touch-screen HMI which displays diagnostic information and allows operators to govern parameters from local or remote (50 m) positions. The first production build was delivered to Geoquip Marine AG in 2015 as part of the wider GMTR-150 deepwater geotechnical drilling spread.
Featured: 40 kN Constant Tension Umbilical Winch · Geoquip Marine AG (2015) · part of the GMTR-150 drilling spread
The 40 kN CT Umbilical Winch was supplied as part of Dimension's wider engineering and build scope for the Geoquip Marine AG GMTR-150 deepwater geotechnical drilling system — alongside the 150 MT pull drill-string heave compensation system, 150 MT power swivel, SBF compensation system, traction winches, project containers and HPU/control modules. The winch is sized for safe, reliable downhole tool deployment with PLC-managed constant-tension control and a 75 kW motor delivering best-in-class speed and pull.
Engineering, fabrication, FAT and offshore commissioning — all under one roof.

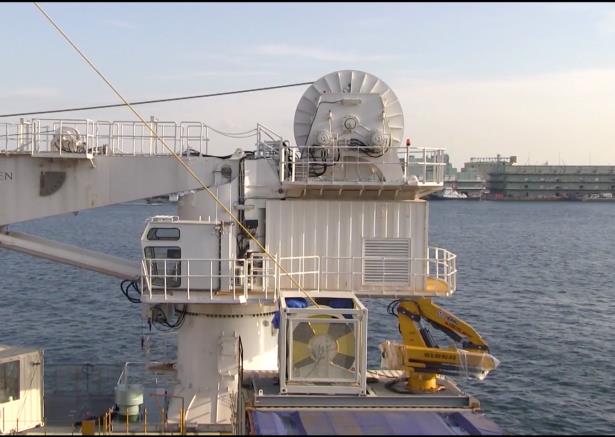

Talk to engineering →Project imagery from the 40 kN Constant Tension Umbilical Winch build — engineered, fabricated and commissioned by Dimension for the Geoquip Marine AG GMTR-150 deepwater geotechnical drilling spread.

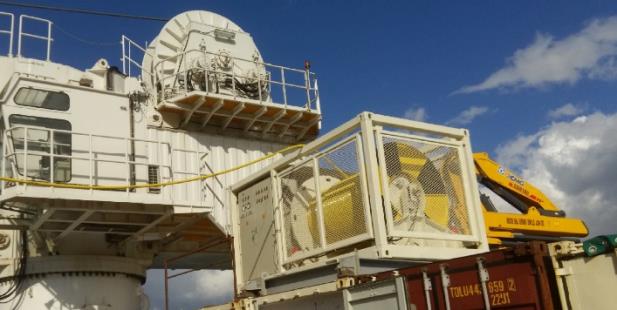

Project photography from the Dimension build — 40 kN CT Umbilical Winch for Geoquip Marine AG (2015), integrated within the GMTR-150 deepwater geotechnical drilling system.
Indicative configuration for the featured 40 kN CT Umbilical Winch build. Drum capacity, motor rating and HMI configuration are customisable on the same modular platform — final specification is project-dependent and confirmed during FEED.
| Parameter | Value |
|---|---|
| Type | Hydraulic constant-tension umbilical winch |
| Rated Pull at 1st Layer | 35 kN (40 kN class) |
| Line Speed at 1st Layer | 90 m/min |
| Drum Dimensions | ID 0.8 m · OD 1.78 m · Length 1.87 m |
| Drum Capacity | 2 000 m @ 35 mm dia |
| Overall Dimensions | 4.2 m (L) × 2.2 m (W) × 2.2 m (H) |
| Overall Weight | 5 MT |
| Rated Power | 75 kW @ 1 480 rpm |
| Power Supply | 415 / 460 V · 50 / 60 Hz · 3-phase |
| Motor Cos φ | 0.79 |
| IP Rating | IP 56 |
| Offshore Rating | Sea State 6 |
| PLC | Siemens S7-1200 |
| HMI / User Interface | Proface GP-4401 |
| Operations Modes | Local / Remote (50 m cable) |
| Tension Control | Constant-tension · closed-loop · no external sensors |
| Mobilisation | Container-mobilised |
Featured Dimension build for subsea umbilical winching duty. Additional builds — including higher-pull and deeper-water variants — are available on request from the same modular smart-winch platform.
Geoquip Marine AG · 2015 · 75 kW · 90 m/min · 2 000 m × 35 mm drum · Siemens S7-1200 · Proface HMI · Sea State 6 · IP 56
Smart constant-tension umbilical winch incorporating state-of-the-art innovations for direct and precise control of speed and tension during downhole tool deployment — ensuring safe and reliable operation in challenging environments. Self-contained: no external components or sensors are required, allowing rapid set-up and operation. Compact dimensions and modest weight (5 MT) allow easy container mobilisation. The 75 kW motor delivers best-in-class line speed and pull, intelligently managed by the PLC for smooth, safe operations. The touch-screen HMI displays diagnostic information and exposes the governing parameters in a simple, operator-friendly interface.
| Parameter | Value |
|---|---|
| Overall Dimensions | 4.2 m (L) × 2.2 m (W) × 2.2 m (H) |
| Overall Weight | 5 MT |
| Rated Pull at 1st Layer | 35 kN |
| Line Speed at 1st Layer | 90 m/min |
| Drum Dimensions | ID 0.8 m · OD 1.78 m · Length 1.87 m |
| Drum Capacity | 2 000 m @ 35 mm dia |
| Rated Power | 75 kW @ 1 480 rpm |
| Power Supply | 415 / 460 V · 50 / 60 Hz · 3-phase |
| Motor Cos φ | 0.79 |
| IP Rating | IP 56 |
| Offshore Rating | Sea State 6 |
| PLC | Siemens S7-1200 |
| HMI | Proface GP-4401 |
| Operations Modes | Local / Remote (50 m cable) |
| Tension Control | Constant-tension · closed-loop · no external sensors required |
| Application | Downhole tool deployment / CPT & SBF umbilical handling |
| Client | Geoquip Marine AG |
| Year of Build | 2015 |
| Integrated With | GMTR-150 deepwater geotechnical drilling spread |
Downhole tool deployment for geotechnical drilling
CPT & SBF umbilical deployment and recovery
ROV tether and small-diameter subsea cable handling
Sub-seabed sampling and seabed survey operations
