Offshore Cranes

Overview

Offshore knuckle-boom and telescopic-boom cranes engineered for heavy-lift, wind-farm support, subsea operations and cable-lay deck handling. Each crane is delivered in six modular units — fixed boom, knuckle (or telescopic) boom, pedestal with slewing column, control panel, operator cabin and platform — and is fully certified and load tested by BV and ABS (project basis) before sailaway.

Modular six-unit build — fixed boom, knuckle / telescopic boom, pedestal & slewing column, control panel, operator cabin and platform shipped pre-tested for fast vessel integration.
Dual motor-reduction slew + over-centre luffing — twin slew drives with safety valves & brakes, hydraulic luffing cylinders with over-centre safety valves for controlled lifting.
Full safety package + class certification — emergency stop, hand-pump lowering, anti-two-block hoist limit, overload alarm and load-monitoring on every build; certified to BV or ABS Lifting Appliance per project.

Key Features

Production portfolio — 100 MT, 40 MT, 20 MT knuckle-boom and 20 MT telescopic-boom builds
SWL up to 100 T @ 10 m; nominal moment up to 1 000 T·m (100 MT build)
Fully certified and load tested — BV (GL 2030 builds) and ABS (SFE Adventurer builds), project basis
360°-limited continuous slewing with twin motor-reduction gear units
Hoist limit switch (anti-two-block), overload alarm and load-monitoring system
Hand-pump emergency lowering and air-conditioned operator cabin
Safe operation up to Sea State 4 / 1.5 m wave height, Heel up to 5°–6° / Trim up to 2°–3°
Flood and aviation lighting for low-visibility operations
Cabin / seat / remote control options; 90 – 160 kW · 440 V · 3-ph · 60 Hz supply

100 MT Knuckle Boom Crane — GL 2030 DP2 Cable Lay Barge — (LS Marine Solution) — 100 MT Knuckle Boom — GL 2030 (LSMS · BV)

20 MT Knuckle Boom Crane — GL 2030 DP2 Cable Lay Barge — (LS Marine Solution) — 20 MT Knuckle Boom — GL 2030 (LSMS · BV)

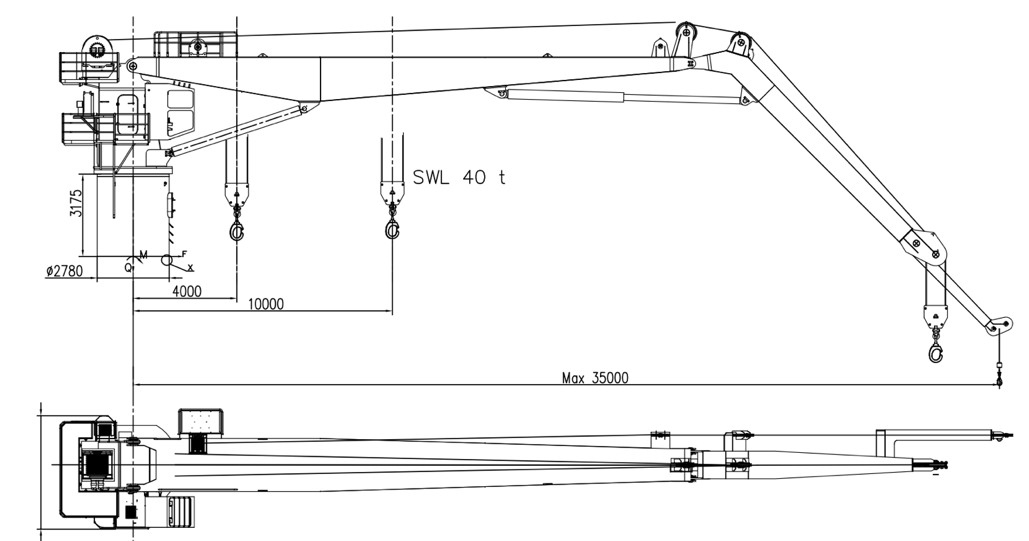

40 MT Offshore Knuckle Boom Crane GA — SFE Adventurer (Shinfox Far East) — 40 MT Offshore Knuckle Boom — SFE Adventurer (Shinfox · ABS)

20 MT Telescopic Boom Crane GA — SFE Adventurer (Shinfox Far East) — 20 MT Telescopic Boom (×2) — SFE Adventurer (Shinfox · ABS)

Project Reference

Crane Programme — 4 Builds, 2 Vessels

GL 2030 DP2 Cable Lay Barge · SFE Adventurer — BV / ABS Lifting Appliance certified

ClientsLS Marine Solution (GL 2030) · Shinfox Far East (SFE Adventurer)

VesselsGL 2030 DP2 Cable Lay Barge · SFE Adventurer

CountriesSouth Korea (GL 2030) · Taiwan (SFE Adventurer)

Years2024 – 2025

ClassBV (GL 2030 builds) · ABS (SFE Adventurer builds) — project basis

TestingFully certified and load tested prior to delivery

Scope across the two programmes: GL 2030 — 100 MT Knuckle Boom Crane (SWL 100 T @ 10 m, 1 000 T·m, 100 m hook travel) for vertical injector & offshore lifting, and 20 MT Knuckle Boom Crane (SWL 20 T @ 8 m, 160 T·m) for sled launching & cable lay deck. SFE Adventurer — 40 MT Offshore Knuckle Boom Crane (SWL 40 T @ 10 m, 400 T·m, 100 m hook travel) for wind-farm support, and two 20 MT Telescopic Boom Cranes (Model CT3-20S2-20F · SWL 20 T @ 4.5 m, 100 T·m each) for cable lay deck operations. All four delivered as six pre-tested modules and integrated alongside Dimension's quadrant, tensioner and overboarding chute spreads.

Need it for a project?

Engineering, fabrication, FAT and offshore commissioning — all under one roof.

Talk to engineering →

Project References

GL 2030 DP2 Cable Lay Barge · SFE Adventurer

Imagery from the four offshore cranes engineered, fabricated and delivered by Dimension — 100 MT and 20 MT knuckle boom for LS Marine Solution's GL 2030 (BV), and 40 MT knuckle boom plus two 20 MT telescopic cranes for Shinfox Far East's SFE Adventurer (ABS).

100 MT Knuckle Boom Crane — pedestal-mounted offshore crane (GL 2030) — 100 MT Knuckle Boom — 1 000 T·m, 100 m hook travel, BV-certified (GL 2030)

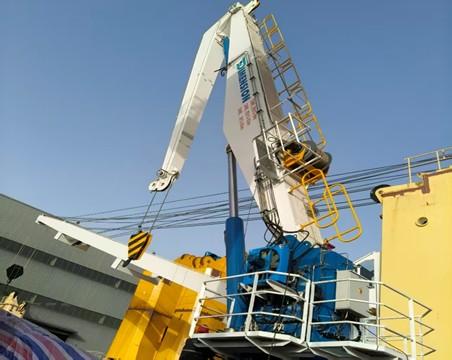

20 MT Knuckle Boom Crane — sled launching & cable lay deck operations (GL 2030) — 20 MT Knuckle Boom — 160 T·m, sled launch & cable lay deck (GL 2030)

SFE Adventurer stern deck — crane & quadrant integration — SFE Adventurer stern deck — crane and quadrant integration (ABS)

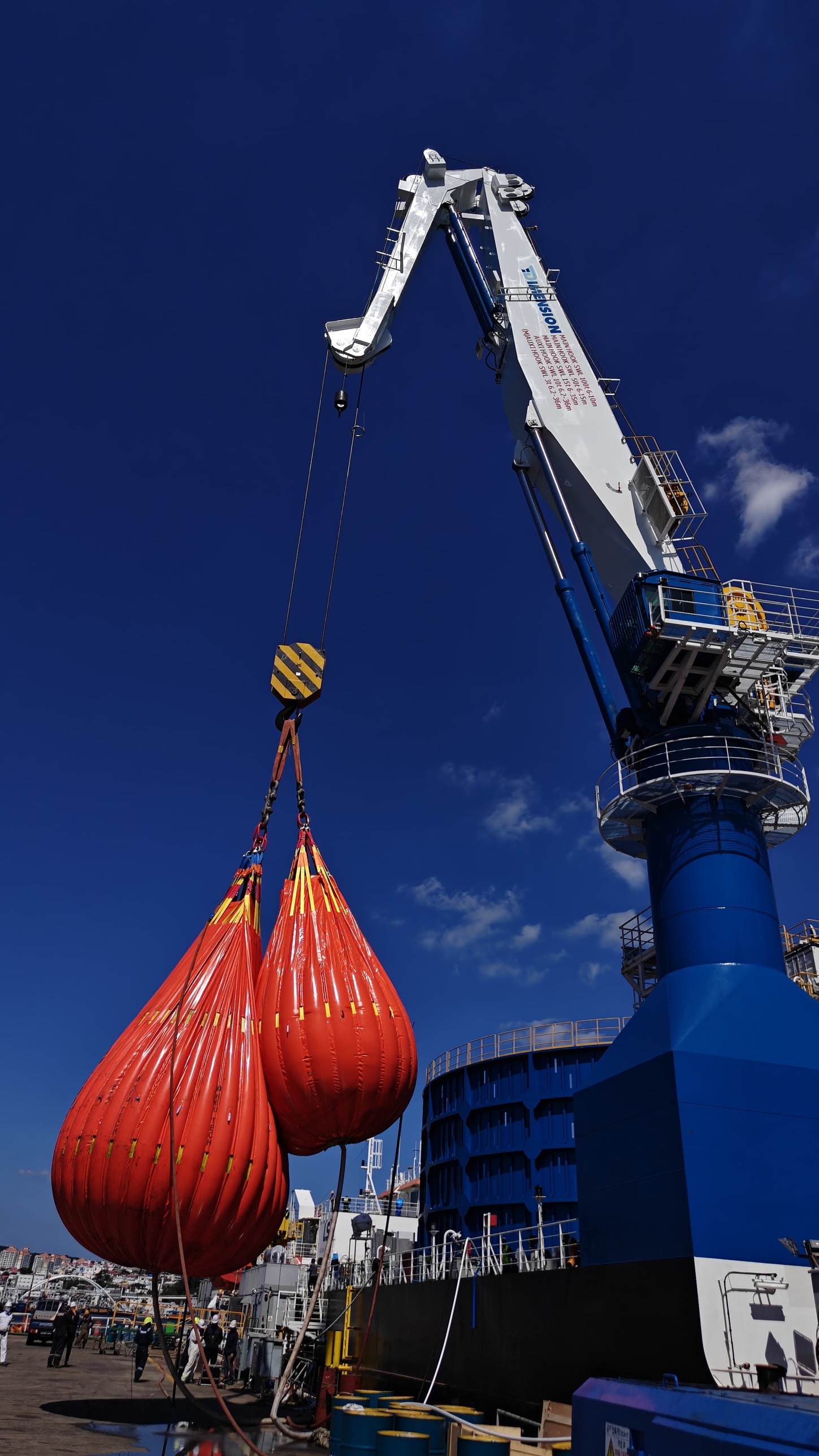

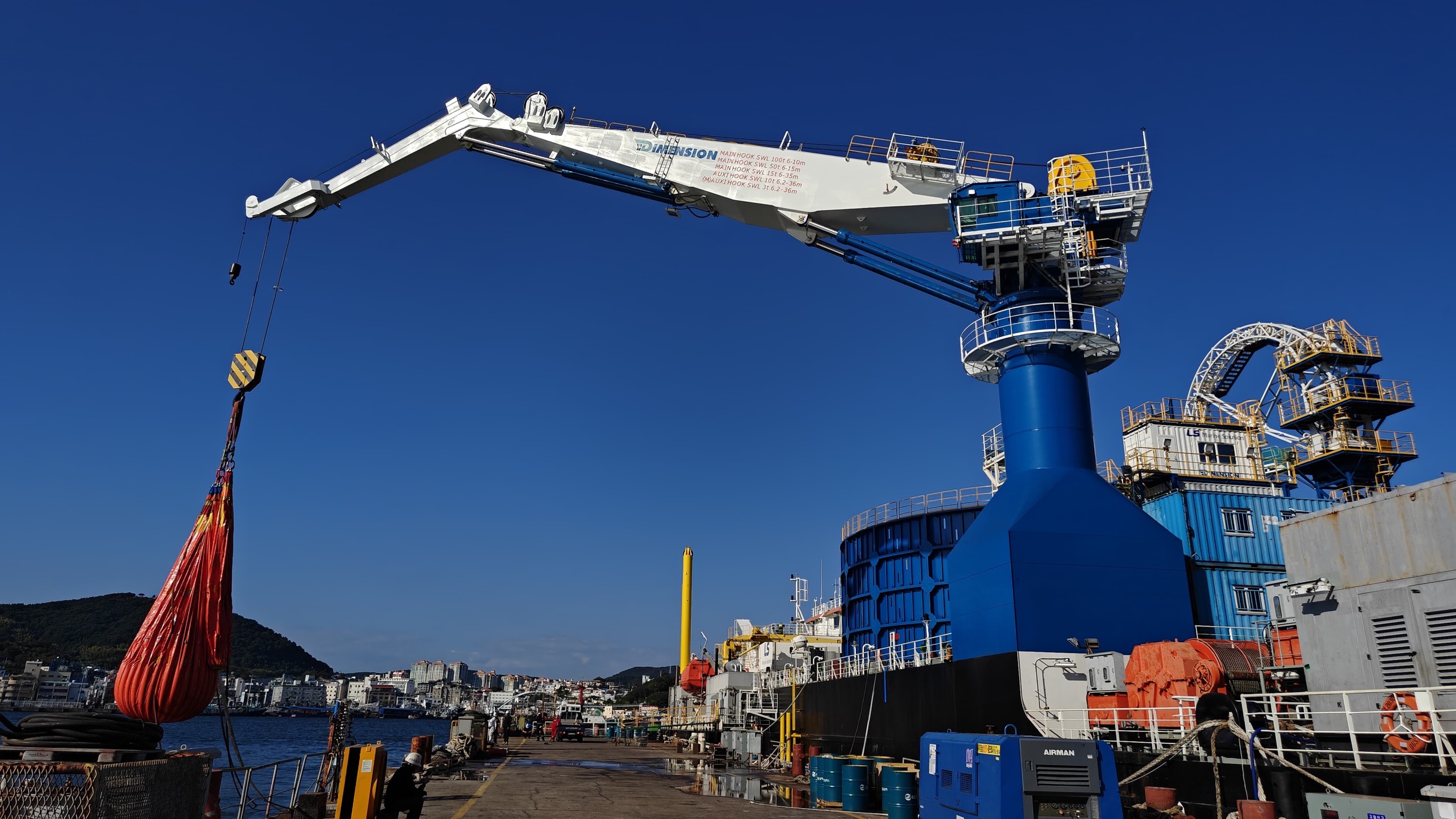

Project photography, renderings & load-rating drawings from Dimension builds — GL 2030 DP2 Cable Lay Barge (LS Marine Solution, South Korea, 2025 · BV Lifting Appliance) and SFE Adventurer (Shinfox Far East, Taiwan, 2024 · ABS Lifting Appliance). All cranes fully certified and load tested prior to delivery.

Parameter	Value
Lift Capacity	5 T – 400 T SWL
Boom Type	Knuckle / lattice / telescopic
Outreach	8 – 90 m
AHC Option	± 3 m, full SWL @ AHC
Subsea Lift	Down to 3,000 m
Slewing Range	360°, continuous
Drive	Hydraulic / electric
Class	DNV / BV / ABS / LR
Foundation	Pedestal, deck-fastened
Operating Wind	Up to 20 m/s (in-service)
Survival Wind	55 m/s (out-of-service)
Cabin	Pressurised, ergonomic, A60-rated

Build Variants

Individual Specifications by Build Size

Select a build to view its full specification, vessel deployment and key features. Four cranes across two vessels — fully certified and load tested by BV (GL 2030) and ABS (SFE Adventurer) on a project basis.

Build Variant

100 MT Knuckle Boom Crane

GL 2030 DP2 Cable Lay Barge · LS Marine Solution · South Korea, 2025 · BV Lifting Appliance · 1 000 T·m nominal lifting moment

Offshore knuckle boom crane delivered as part of the cable lay equipment project awarded by LS Marine Solution to Dimension, supplied to support the Vertical Injector and offshore lifting operations on the GL 2030. The crane is delivered in six modular units — fixed boom, knuckle boom, pedestal with slewing column, control panel, operator cabin and platform — and is electrically, hydraulically and mechanically tested prior to delivery. Slewing is performed by two motor-reduction gear units with safety valves and brakes; luffing by dual hydraulic cylinders with over-centre safety valves for safe and controlled operation.

Parameter	Value
Item Name	100 MT Crane
SWL	100 T @ 10 m · 50 T @ 15 m · 10 T @ 35 m
Nominal Lifting Moment	1 000 T·m
Working Radius	6 m – 35 m
Hook Travel	100 m
Crane Speed	10 m/min low speed · 20 m/min high speed
Luffing Time	120 sec
Knuckle Time	120 sec
Slew Speed	360° limited · 0.6 RPM
Operating Cond.	Heel = 5° · Trim = 2°
Working Env.	Safe Zone · Sea State 4 · 1.5 m wave height
Control Panel	Cabin control
Power Required	90 kW · 440 V · 3-phase · 60 Hz
Vessel	GL 2030 DP2 Cable Lay Barge
Client	LS Marine Solution (LSMS)
Country / Year	South Korea · 2025
Certification	BV Lifting Appliance

Supports Vertical Injector and offshore lifting operations on the GL 2030 cable-lay package
Delivered in six pre-tested modules — fixed boom, knuckle boom, pedestal & slewing column, control panel, operator cabin, platform
Twin motor-reduction slew drives with safety valves and brakes; dual luffing cylinders with over-centre safety valves
Emergency stop, hand-pump emergency lowering and air-conditioned operator cabin
Hoist limit switch (anti-two-block), overload alarm and load-monitoring system
Flood light and aviation light for safe operation in low-light conditions
Electrically, hydraulically and mechanically tested prior to delivery — BV Lifting Appliance certified

Build Variant

20 MT Knuckle Boom Crane

GL 2030 DP2 Cable Lay Barge · LS Marine Solution · South Korea, 2025 · BV Lifting Appliance · Model DIM2008-0326 · 160 T·m nominal lifting moment

Hydraulic knuckle boom crane delivered as part of the cable lay equipment project awarded by LS Marine Solution to Dimension, provided to support sled launching and cable lay deck operations on the GL 2030. The crane is delivered in six modular units — fixed boom, knuckle boom, pedestal with slewing column, control panel, operator cabin and platform — and is electrically, hydraulically and mechanically tested before delivery. Slewing uses two motor-reduction gear units with safety valves and brakes; luffing is achieved through hydraulic cylinders with over-centre safety valves for safe operation.

Parameter	Value
Item Name	20 MT Crane
Model	DIM2008-0326
SWL	20 T @ 8 m · 15 T @ 10 m · 3 T @ 26 m
Nominal Lifting Moment	160 T·m
Working Radius	5 m – 26 m
Hook Travel	50 m
Crane Speed	0 – 20 m/min < 8 T · 0 – 10 m/min > 8 T
Luffing Time	120 sec
Slewing Time	120 sec · 360° limited
Operating Cond.	Heel = 6° · Trim = 3°
Working Env.	Safe Zone · Sea State 4 · 1.5 m wave height
Control Panel	Seat & Remote control
Power Required	90 kW · 440 V · 3-phase · 60 Hz
Slew Drive Unit	Hydraulic motor with planetary gear reduction · 0.8 kW air cooling
Vessel	GL 2030 DP2 Cable Lay Barge
Client	LS Marine Solution (LSMS)
Country / Year	South Korea · 2025
Certification	BV Lifting Appliance

Designed to support sled launching and cable lay deck operations on the GL 2030
Delivered in six pre-tested modules — fixed boom, knuckle boom, pedestal & slewing column, control panel, operator cabin, platform
Twin motor-reduction slew drives with safety valves and brakes; hydraulic luffing cylinders with over-centre safety valves
Hand-pump emergency lowering and floodlight for safe operation in low-visibility conditions
Hoist limit switch, overload alarm, load-monitoring system and emergency stop
Seat and remote control options for flexible deck-side operation
Electrically, hydraulically and mechanically tested prior to delivery — BV Lifting Appliance certified

Build Variant

40 MT Offshore Knuckle Boom Crane

SFE Adventurer · Shinfox Far East · Taiwan, 2024 · ABS Lifting Appliance · 400 T·m nominal lifting moment · wind-farm support operations

One unit of Offshore Knuckle Boom Crane supplied for Wind Farm Support Operations on the SFE Adventurer. The hydraulic knuckle boom crane is delivered as six modular units — fixed boom, knuckle boom, pedestal and slewing column, control panel, operator cabin and platform — tested electrically, hydraulically and mechanically and arrives ready for installation. Slewing rotation is by twin motor-reduction gear units with safety valves and brakes; luffing is by dual hydraulic cylinders with safety over-centre valves. The crane carries main and auxiliary hooks, with the auxiliary hook rated for manriding.

Parameter	Value
Type	Hydraulic knuckle boom
Nominal Lifting Moment	400 T·m

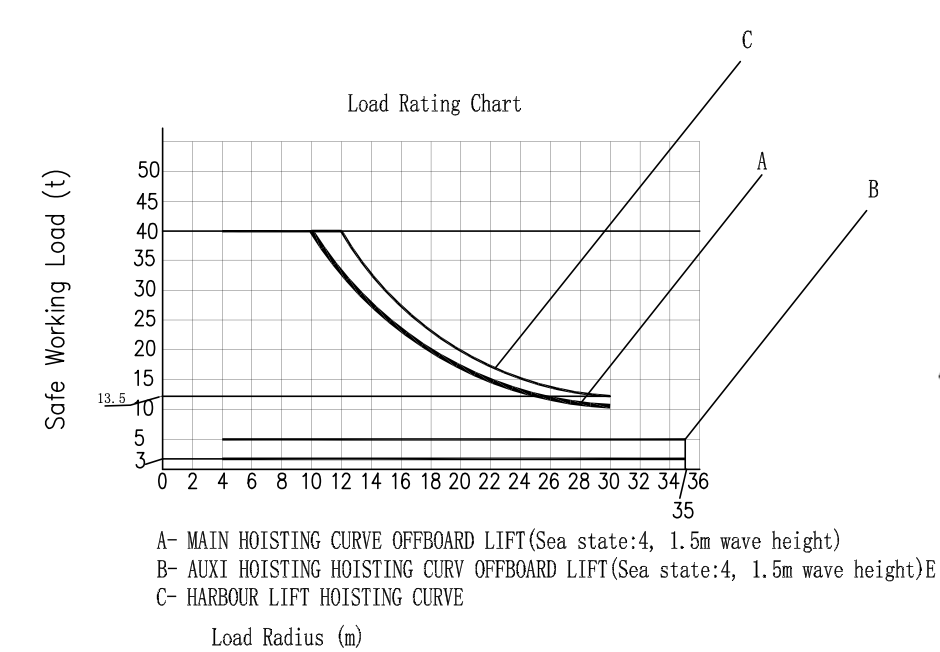

SWL — Main Hook	40 T @ 10 m · 10 T @ 30 m · 5 T @ 35 m
SWL — Aux Hook	3 T @ 35 m (manriding)
Working Radius	4 m – 35 m
Hook Travel	100 m
Crane Speed — Main	12 m/min low · 36 m/min high
Crane Speed — Aux	24 m/min low · 48 m/min high
Luffing Time	120 sec
Knuckle Time	110 sec
Slew Speed	360° limited · 0.6 RPM
Slew Drive Unit	Hydraulic motor with planetary gear reduction · 5.5 kW air cooling
Hydraulic Power Pack	Internal power pack with soft starter
Pedestal	Crane comes complete with base for hull integration
Operating Cond.	Heel = 5° · Trim = 2°
Working Env.	Safe Zone · Sea State 4 · 1.5 m wave height
Operating Temperature	-10 °C to 50 °C
Control Panel	Cabin control
Power Required	160 kW · 440 V · 3-phase · 60 Hz
Vessel	SFE Adventurer
Client	Shinfox Far East
Country / Year	Taiwan · 2024
Certification	ABS Lifting Appliance Certificate

Single 40 MT crane supporting wind-farm support operations on the SFE Adventurer
Dual hooks — 40 T main + 3 T auxiliary rated for manriding
Six pre-tested modules — fixed boom, knuckle boom, pedestal & slewing column, panel, cabin, platform
Twin motor-reduction slew drives with safety valves and brakes; dual luffing cylinders with over-centre safety valves
Hoist limit switch (anti-two-blocking), overload alarm, load-monitoring system, emergency stop
Air-conditioned operator cabin · flood light · aviation light · hand-pump emergency lowering
Internal hydraulic power pack with soft starter; pedestal complete with base for hull integration
Fully load tested — ABS Lifting Appliance Certificate

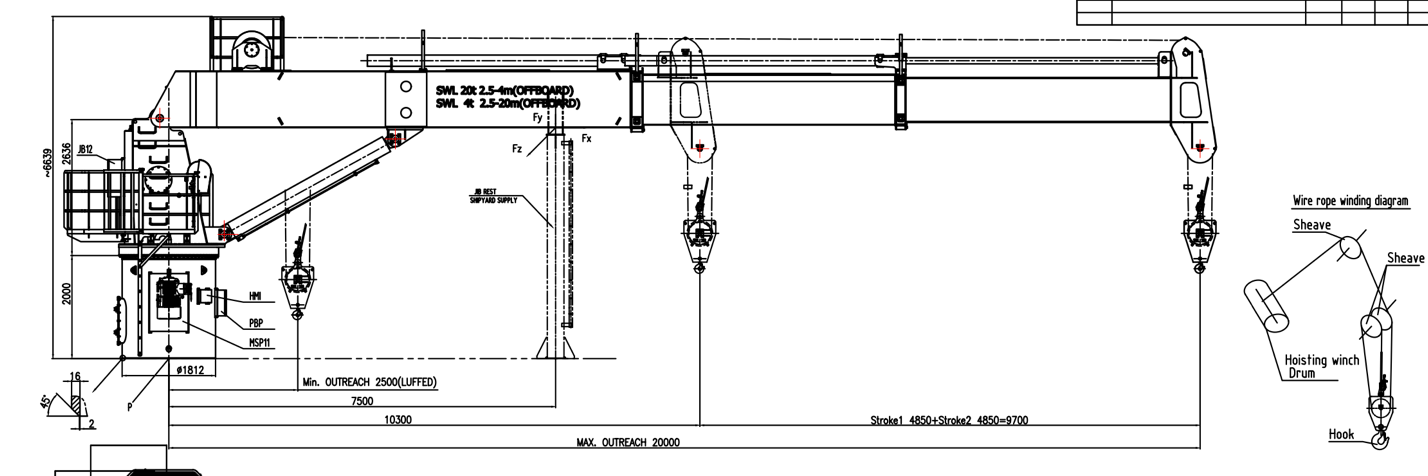

20 MT Telescopic Boom Crane — Dimension build for SFE Adventurer

Build Variant

20 MT Telescopic Boom Crane (×2 units)

SFE Adventurer · Shinfox Far East · Taiwan, 2024 · ABS Lifting Appliance · Model CT3-20S2-20F · 100 T·m nominal lifting moment · cable lay deck operations

Two units of the Hydraulic Telescopic Boom Crane (Model CT3-20S2-20F) installed on the SFE Adventurer to support cable lay deck operations. Compact 100 T·m telescopic-boom design with 30 m hook travel and 360°-limited slewing, supplied with internal hydraulic power pack and seat & remote control for flexible deck-side use. ABS Lifting Appliance certified.

Parameter	Value
Type	Hydraulic telescopic boom
Model	CT3-20S2-20F
Units Supplied	2
Nominal Lifting Moment	100 T·m

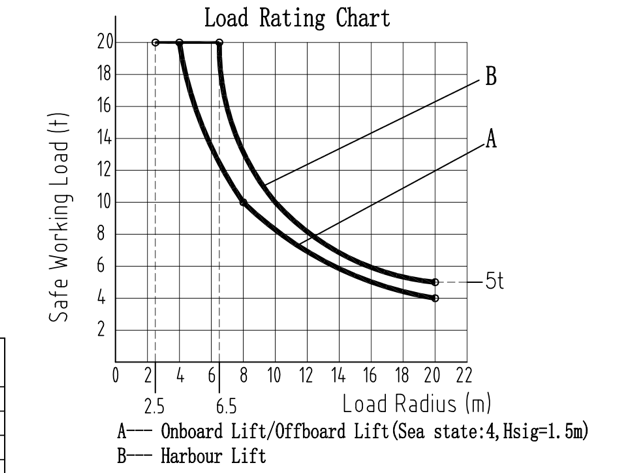

SWL	20 T @ 4.5 m · 4 T @ 20 m
Working Radius	3.0 m – 20 m
Hook Travel	30 m
Crane Speed	0 – 30 m/min < 8 T · 15 m/min ≥ 8 T
Luffing Time	60 sec
Telescopic Time	45 sec
Slew Speed	360° limited · 0.8 RPM
Slew Drive Unit	Hydraulic motor with planetary gear reduction · 0.8 kW air cooling
Hydraulic Power Pack	Internal power pack with soft starter
Pedestal	Crane comes complete with base for hull integration
Operating Cond.	Heel = 5° · Trim = 2°
Working Env.	Safe Zone · Sea State 4 · 1.5 m wave height
Operating Temperature	-9.9 °C to 50 °C
Control Panel	Seat & remote control
Power Required	90 kW · 440 V · 3-phase · 60 Hz
Vessel	SFE Adventurer
Client	Shinfox Far East
Country / Year	Taiwan · 2024
Certification	ABS Lifting Appliance Certificate

Two units installed to support cable lay deck operations on the SFE Adventurer
Compact telescopic-boom design — 20 T @ 4.5 m / 4 T @ 20 m, 30 m hook travel
Six pre-tested modules — pre-assembled and bench-tested before delivery
Hoist limit switch, overload alarm, load-monitoring system, emergency stop
Flood light · hand-pump emergency lowering for safe operation
Seat and remote control for flexible deck-side and elevated operation
Internal hydraulic power pack with soft starter; pedestal complete with base for hull integration
Fully load tested — ABS Lifting Appliance Certificate
